VS Roll (Vacuum Suction Roll)

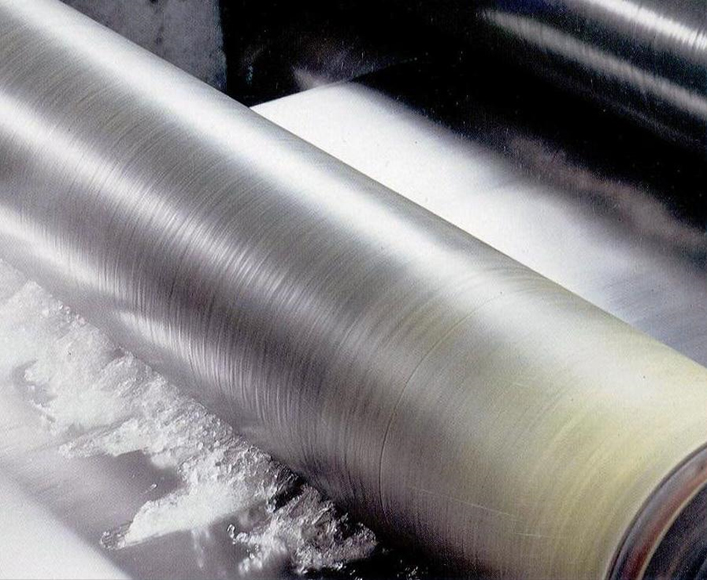

What is "VS ROＬL" (Vacuum Suction Roll)
"ＶＳ ＲＯＬＬ" is made of a material with non-woven textile and elastic urethane. By the excellent ability of remove the liquid and highly endurance. This roll uses for automobile press line and share line, and steel plant, electronics factories , and film industrial etc...
Benefits
Compared to a usual rubber roll. VS ROLL is able to preventing rust and pollution at water revoving process. And able to coat thin membrane at oil or chemical removing process . By adopting VS ROLL the higher productivity, the decrease of dryer power, the quality stabilization ,and the development of new process are expected.
Cost Reduction & Reliability
"VS ROLL enables energy saving by reducing dryer power, and prevent the global warming. Oil and chemical liquid are enabled to recover and re-using, In addition this roll has a good durability compared to conventional rubber roll.

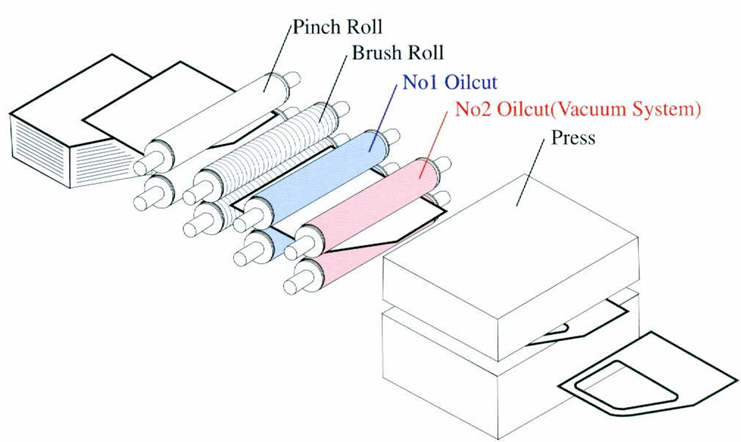

sheet feeder in press line
|

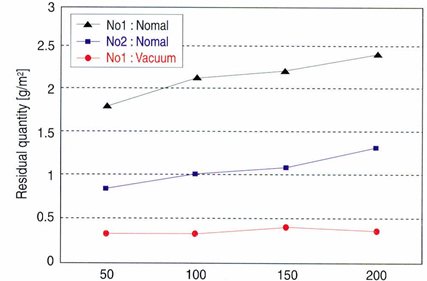

Testing examples The average of coating quantity in experiment is 28g/㎡ |
 |
Results
Impurities are decreased because the flow quantity of fluid 200～400 liter per minute
It enables to save costs due to reduce the waste produts that damaged by remain oil.
Scraps or reformed parts by FOD (foreign object damaged) are approximately 70%-80% decreased.
Less damage on the roll surface and oil trace is not appeared even though the different width sheets.

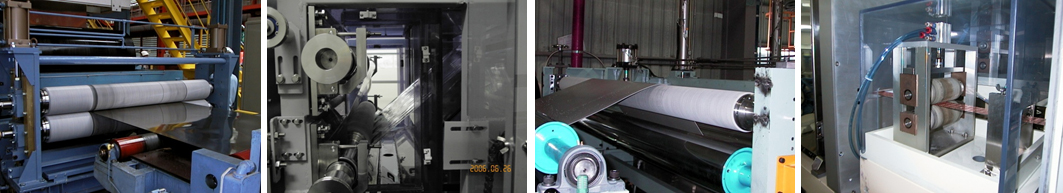

Application
Guide roll for non-slip
Water cutting after cleaning or before drying
Oil cutting after leveling or before recoiling
Fluid cutting after chemical treatments
Uniform coating water,oil,resin,etc
